LM-PYS01 |
|
| LINK-MI LM-PYS01 Pro YPbPr to SDI Converter |
| |

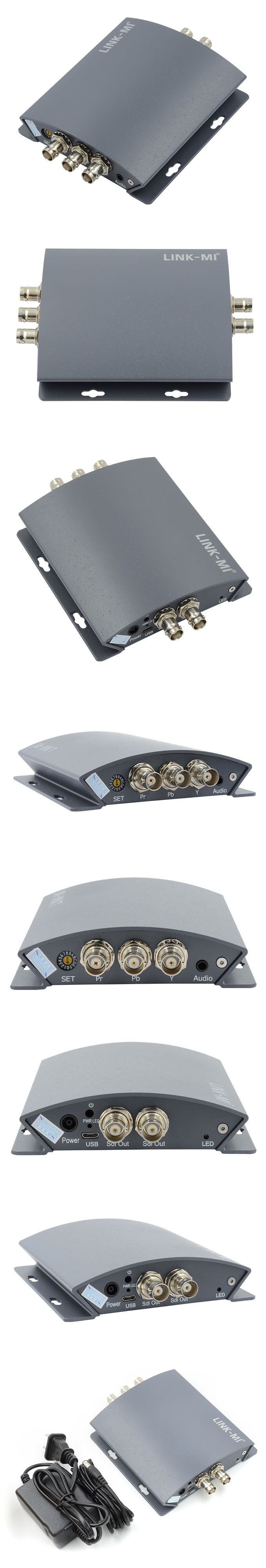

Introduction:

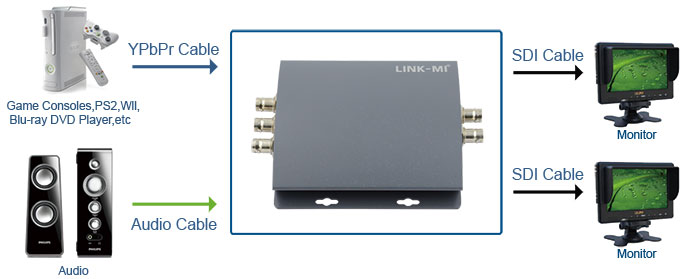

1. Standard YPbPr signal input2. Optional 3G / HD / SD SDI signal output3. Optional 1080P / 1080I / 720P / 480I / 576I common resolution4. Optional 1080PSF / 720P 30/25/24 special resolution5. Optional "down converted" trim or add black borders6. YPbPr input signal adaptively7. Support external analog stereo audio signals embedded in SDI signal8. SDI output can be set as "frequency-conversion”9. SDI output can be set as "fixed frequency"10. Special features can be customized |
|
|
| |
|
|
|
|

Specification
|
Name |
HD video YPbPr to SDI converter |
|
Model No. |
LM-PYS01 |
|

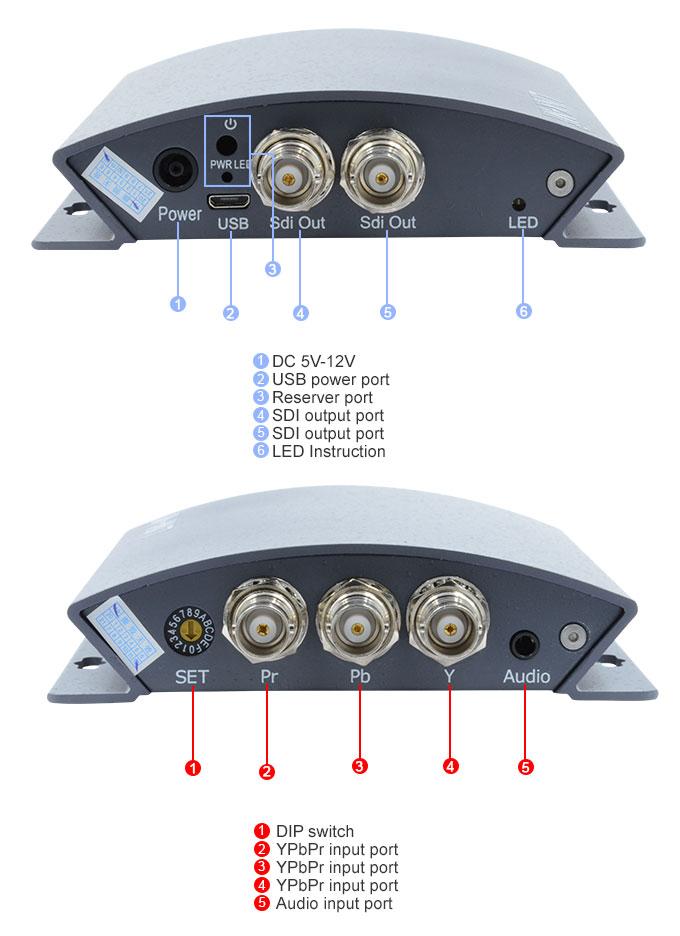

YPbPr Input |
Signal |
YPbPr Standard |
|
Connector |
BNC |
|
SMPTE |
27M |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
75Ω |
|
Analog Audio Iutput |
Output Signal |
Analog Stereo Audio |
|
Impedance |
16Ω |
|
Connector |
Earphones |
|
SDI Output |
Output Signal |
SDI Signal |
|
Connector |
BNC (IEC169-8 Standard) |
|
Signal Amplitude |
800mv ±10% ( 75 Ω) |
|
Impedance |
175Ω |
|
General Parameters |
Power Supply |
DC 5-12V |
|
Power |
<2W |
|
Dimension(L*W*H) |
141*102*30 mm |
|

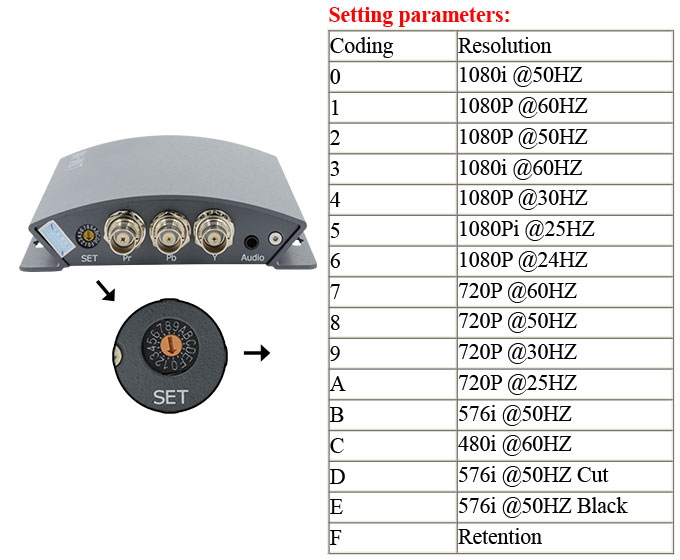

Control |
DIP Switch |
|
Net Weight |
0.3kg |
|
Operating Temperature Range |
0-50℃ |
|
Storage Temperature Range |
-20 to 75℃ |
|
Operating Humidity Range |
20-70%RH |
|
Storage Humidity Range |
0-90%RH | Packing Contents
1. Main Unit. YPbPr to SDI Converter
2. 1pcs DC 5V Power Adapter
3. 1pcs User Manual |
 |
|
|
|
|
